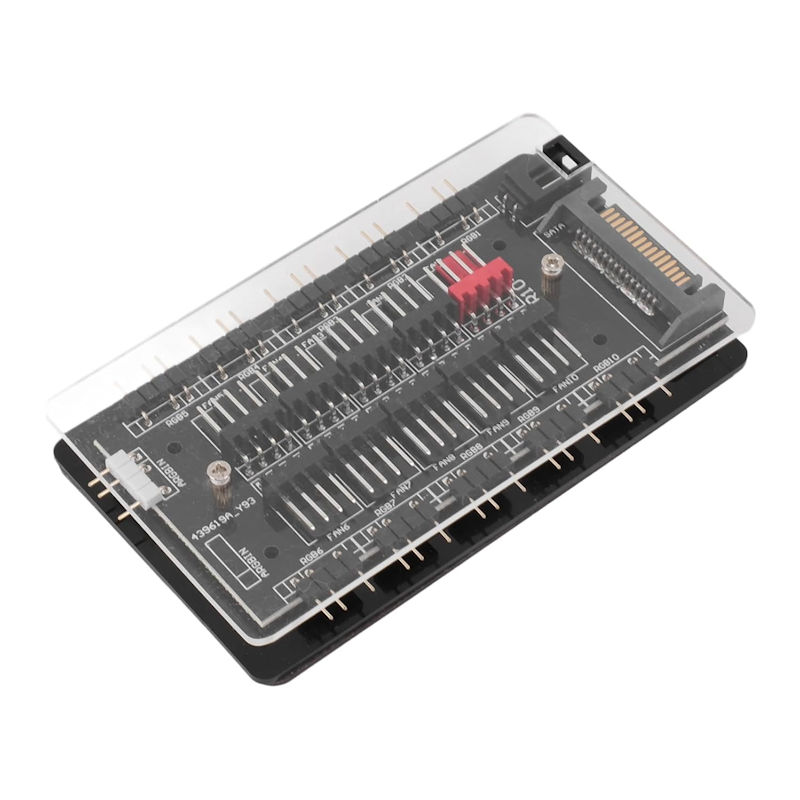

The 10 Port ARGB & PWM SATA Powered Magnetic Fan Hub (OEM) is a high-density cable management solution designed to centralize the control of multiple cooling components. This hub is engineered to bridge the gap between limited motherboard headers and modern, high-airflow chassis designs that require significant fan and lighting arrays.
By utilizing a dedicated SATA power connection directly from the PSU, the hub ensures that up to ten fans and ARGB devices receive stable voltage without overloading the delicate circuitry of your motherboard. The integrated magnetic base provides a tool-free mounting solution, allowing the hub to be securely “hidden” on any steel surface within the chassis for a clean, professional aesthetic.
Dual 10-Port Capacity: Manages up to 10 PWM (4-pin) fans and 10 ARGB (5V 3-pin) lighting devices simultaneously from a single central point.
Direct SATA Power: Draws power directly from the Power Supply Unit to prevent voltage drops or motherboard header burnout under high loads.
Magnetic Suction Base: Features a strong built-in magnetic plate for effortless, non-permanent placement on the back of the motherboard tray or PSU shroud.
Universal Sync Support: Fully compatible with major motherboard lighting software, including ASUS Aura Sync, MSI Mystic Light, and Gigabyte RGB Fusion.
PWM Signal passthrough: Connects to a single motherboard PWM header to allow synchronous speed control for all connected fans based on system temperature.
Compact Footprint: Engineered with a slim, low-profile design that simplifies cable routing in tight spaces or high-density builds.
In-Store Advice: We can verify if your specific fans are the 5V 3-pin ARGB type or the older 12V 4-pin RGB style to ensure absolute compatibility before you buy.
Local Support: As Central Coast hardware specialists, we offer in-store troubleshooting for complex RGB syncing issues and local replacement support for your peace of mind.
$29.00
Out of stock
| Weight | .08 kg |
|---|---|
| Dimensions | 12 × 7 × 3 cm |
Compatibility: Requires a motherboard with at least one 4-pin PWM fan header and one 5V 3-pin ARGB header for full software synchronization.
Local Technical Support: Visit our Charmhaven workshop for professional cable management services if you need help tidying up your high-performance rig.
| Feature | Details |
| Product Type | ARGB & PWM Fan Hub |
| Ports (PWM) | 10 x 4-Pin (Compatible with 3-Pin) |
| Ports (ARGB) | 10 x 3-Pin 5V Addressable RGB |
| Power Input | SATA Power (15-Pin) |
| Mounting Type | Built-in Magnetic Base |
| Input Voltage | 12V (Fans) / 5V (ARGB) |
| Dimensions | Approx. 92 x 46 x 15 mm |
| Interface Sync | Motherboard Header (PWM + ARGB) |
