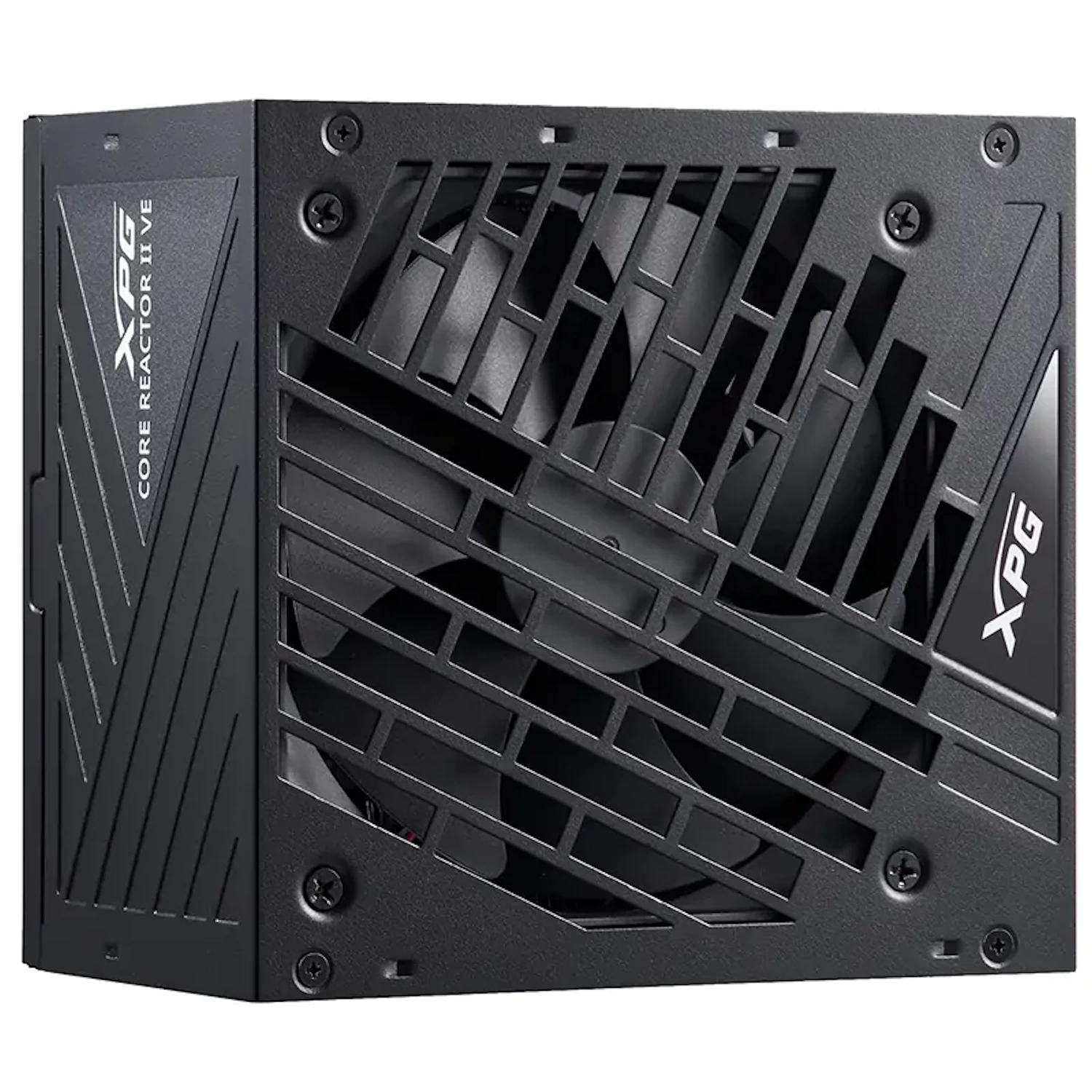

The ADATA XPG 850W Core Reactor II VE 80+ Gold Fully Modular ATX 3.1 Power Supply [COREREACTORIIVE850G-BKCAU] is a next-generation power solution engineered to meet the latest Intel ATX 3.1 design guidelines. This unit provides a stable 850W of gold-certified efficiency, specifically optimized for high-performance builds featuring the latest NVIDIA 40-series and future graphics cards via its native 12V-2×6 connector.
Equipped with a DC-to-DC circuit design and a 120mm Fluid Dynamic Bearing (FDB) fan, the Core Reactor II VE ensures exceptional ripple control and a hold-up time that exceeds standard Intel specifications. Its compact 140mm length makes it highly compatible with a wide variety of chassis, while the fully modular cable system allows for a clean build with improved airflow.
ATX 3.1 & PCIe 5.1 Ready: Fully compliant with the latest standards, including a dedicated 600W 12V-2×6 conneor for high-end GPUs.
80 PLUS Gold Efficiency: Delivers up to 90% efficiency at typical loads, reducing energy waste and heat generation.
Premium Cooling: Features a 120mm FDB fan with an intelligent fan curve to balance silent operation with effective thermal management.
Compact Form Factor: The 140mm depth ensures easy installation in small-to-mid-sized ATX cases without sacrificing power.
Comprehensive Protection: Includes 8 industrial-grade protections (OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP) for total system safety.
DC-DC Circuitry: High-quality DC-to-DC design provides stable voltage regulation and minimizes ripple noise.
In-Store Advice: Our technical team can help you calculate the total power draw of your specific components to ensure this 850W unit provides the necessary headroom for peak performance and future upgrades.
Local Support: If you’re building a system on the Central Coast, we can assist with professional cable management in-store, ensuring you only use the modular cables you need for a clutter-free finish.
$149.00
In stock
%20Specs.webp)
| Weight | 3.1 kg |
|---|---|
| Dimensions | 31 × 21 × 13 cm |
Power & Compatibility: This unit is designed for ATX 3.1 standards; ensure your components are compatible with modular 12V-2×6 or traditional PCIe 6+2 cables, all of which are included.
Local Technical Support: We offer local assistance for PSU testing and installation at our Charmhaven workshop, helping you verify that your power delivery is stable under full system load.
| Feature | Technical Specification |
| Form Factor | ATX 12V v3.1 |
| 80 PLUS Rating | Gold |
| Wattage | 850W |
| Modularity | Fully Modular |
| Fan Size | 120mm Fluid Dynamic Bearing (FDB) |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| 12V-2×6 Connector | 1 (Supports up to 600W) |
| PCI-E 6+2 Pin | 3 |
| SATA Connectors | 6 |
| Molex 4 Pin | 2 |
