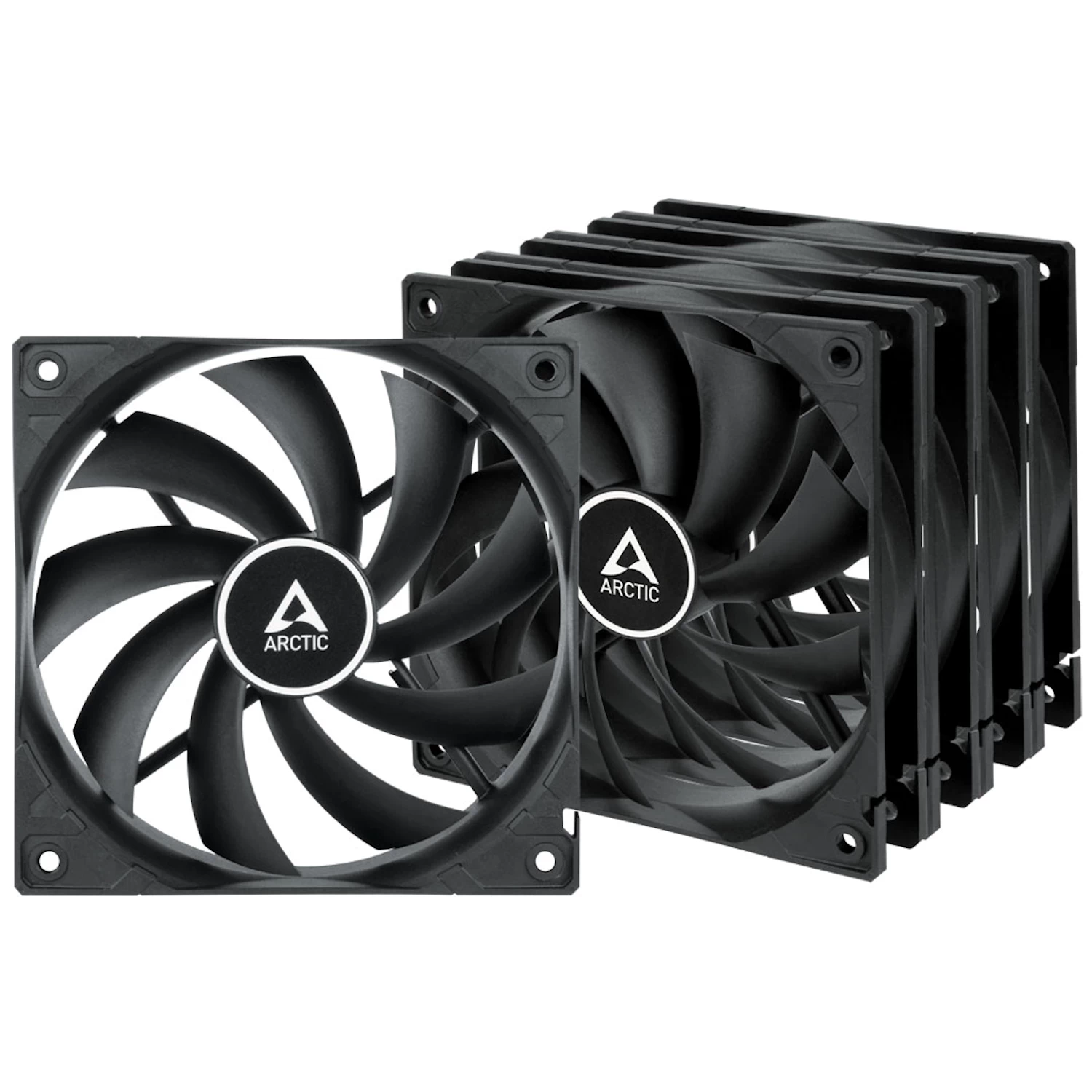

The Arctic F12 120mm Fan Black 5 Pack [ACFAN00248A] delivers efficient and dependable chassis ventilation in a convenient multi-pack configuration. Engineered for consistent everyday thermal performance, this collection of fans provides a practical solution for establishing systemic airflow throughout an entire desktop chassis.
Utilising a refined fixed-speed approach, these fans focus on air volume optimisation and low-noise output. The implementation of premium internal bearings minimises structural friction, ensuring sustained mechanical reliability and quiet operation over extended periods of computing use.
Fan Size and Standard Fitment: Built to standard 120mm sizing specifications with a standard 25mm profile thickness, ensuring seamless compatibility across standard chassis mounts, radiators, and liquid cooling setups.
Optimised Airflow Design: Delivers a maximum airflow rating of 53 CFM per unit to effectively evacuate warm ambient air or draw fresh intake air into the interior chamber of the desktop PC.
Fluid Dynamic Bearing Technology: Equipped with an enclosed fluid dynamic bearing system utilizing an integrated oil capsule to prevent structural lubricant leakage, enhancing overall longevity while reducing kinetic noise.
Standard 3-Pin Connectivity: Utilises a standard 3-pin DC fan power connector, offering straightforward direct motherboard installation or connection to centralized system fan hubs.
In-Store Advice: Our team provides direct technical guidance to help you navigate specific airflow configurations, map out optimal fan spacing inside your selected chassis geometry, and coordinate multiple 3-pin headers for balanced hardware layouts.
Local Support & Advice: Benefit from expert assistance right here in Charmhaven to determine structural fan orientations, implement positive or negative chassis pressure balances, and align case fan configurations for optimal hardware stability.
%20Specz.webp)
| Weight | .7 kg |
|---|---|
| Dimensions | 14 × 13 × 13 cm |
Compatibility: These fans feature standard 120mm mounting hole spacing and utilize a fixed-speed 3-pin DC power connector, requiring available 3-pin or 4-pin motherboard chassis fan headers for standard operation.
Local Support: Our team provides localized technical advice regarding correct physical fan orientation to ensure clear intake or exhaust direction, avoiding common installation placement issues.
| Feature | Specification |
| Model Number | ACFAN00248A |
| Fan Size | 120mm |
| Speed Range (RPM) | 1350 RPM (Fixed Speed) |
| Airflow (CFM) | 53 CFM (90.1 m³/h) |
| Static Pressure (mm-H₂O) | 1.00 mm-H₂O |
| Noise Level (dBA) | 0.3 Sone (Approx. 22.5 dBA) |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Connector Type | 3-Pin DC Connector |
| Voltage | 12 V DC (Starting Voltage 2.7 V) |
| Rated Current | 0.12 A |
| RGB Type | Non-LED / None |
| RGB Control Method | Not Applicable |
| Cable Length | 400 mm |
| What’s Included | 5 x F12 Fans, 20 x Mounting Screws |
