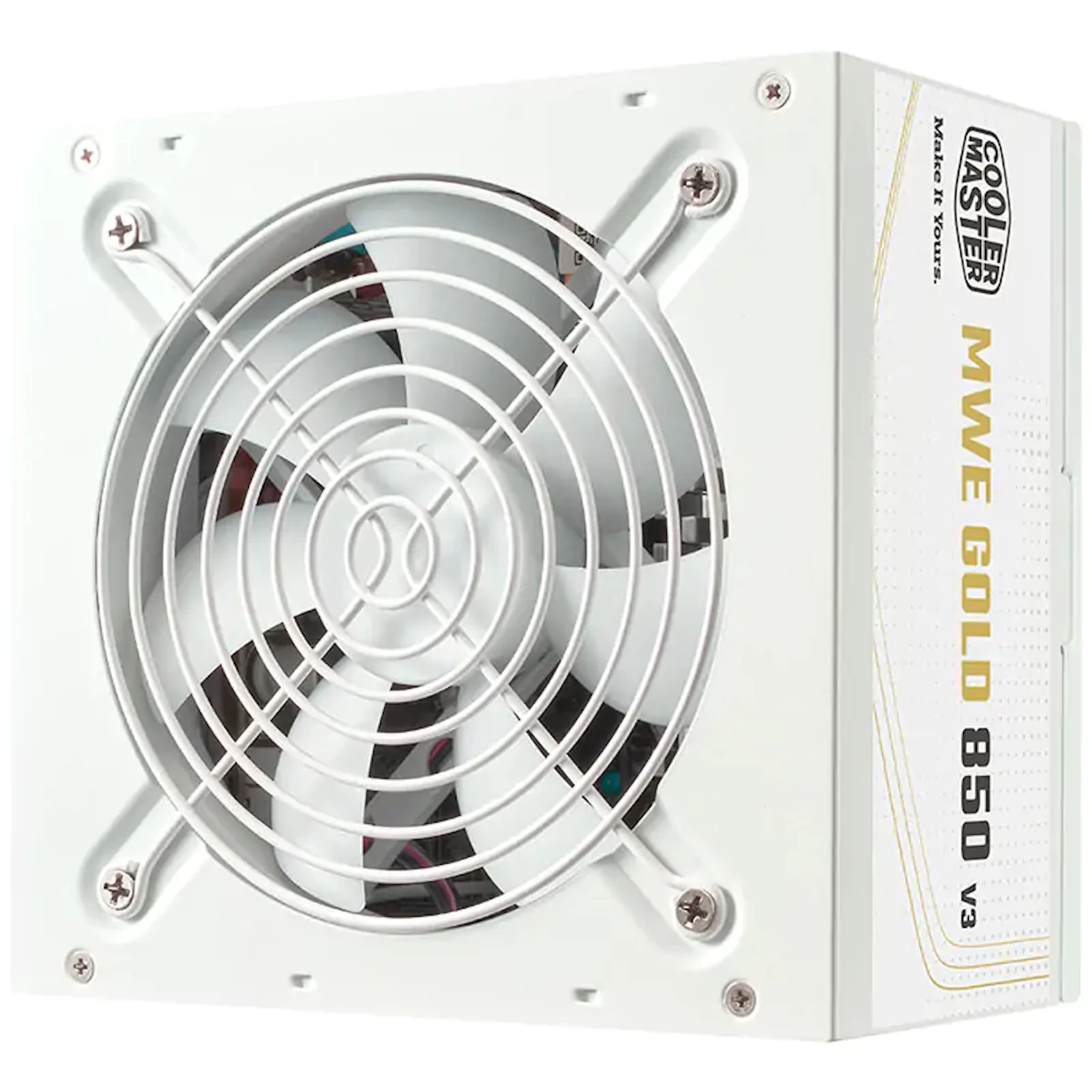

The Cooler Master 850W MWE 80+ Gold ATX 3.1 Power Supply White (MPE-8506-ACAG-GAU) is a high-performance power solution tailored to meet the needs of modern desktop configurations. It supplies 850 watts of continuous, reliable power to support mainstream or clean white-themed gaming rigs and workstations.
This unit incorporates full ATX 3.1 compliance to successfully handle sustained system operation and transient power spikes from next-generation graphics cards. It utilizes an optimized platform featuring certified energy performance under real-world loads to minimize operational heat, lower noise levels, and provide stable power delivery.
Key Features & Specifications
80 Plus Efficiency: certified rating (Bronze/Gold/Platinum/Titanium) for reduced heat and improved power usage.
Modular Cabling: fully modular, semi‑modular, or fixed cables depending on the model for cleaner airflow.
Low-Noise Cooling: quiet fan design such as FDB, hydraulic bearing, or zero‑RPM mode.
Comprehensive Protections: includes OVP, OPP, SCP, UVP, OTP, and OCP for safe and stable operation.
The Computer Guy Charmhaven Advantage
In-Store Advice: We can help you choose the correct wattage, confirm GPU connector compatibility, and ensure your case supports the PSU’s form factor and cable lengths.
Local Support & Advice: Our Charmhaven technicians can assist with cable routing, load balancing, and verifying correct EPS/PCIe power connections.
$129.00
Only 1 left in stock
%20Specs.webp)
| Weight | 2.4 kg |
|---|---|
| Dimensions | 31 × 20 × 13 cm |
Important Product Information
Compatibility: Ensure your case supports the PSU’s form factor (ATX/SFX) and that cable lengths suit your chassis layout.
Local Support: Our team can advise on installation, cable management, and selecting the right wattage for future upgrades.
Specifications Table
| Feature | Specification |
| Model Number | MPE-8506-ACAG-GAU |
| Form Factor | ATX |
| Wattage | 850W |
| 80 Plus Rating | Gold |
| Modular Type | Non-Modular |
| Fan Type | HDB |
| Fan Size | 120mm |
| Input Voltage | 100V – 240V |
| Protections | UVP, OVP, OPP, OTP, SCP, OCP |
| Cable Type | Embossed / Premium Braided |
| Cable Lengths | Main 24-pin (550mm), EPS (550+120mm), PCIe (550+120mm), 12V-2×6 (600mm), SATA (400+150+150mm) |
| Connector Count | 1x ATX 24-Pin, 2x EPS 8-Pin (4+4 Pin), 4x PCIe 6+2-Pin, 1x 12V-2×6 (12+4 Pin), 6x SATA, 3x Peripheral 4-Pin |
| Efficiency | ≥90% @ Typical Load (80 PLUS Gold Certified) |
| What’s Included | PSU, fixed cables, native 12V-2×6 cable, mounting screws, manual |
