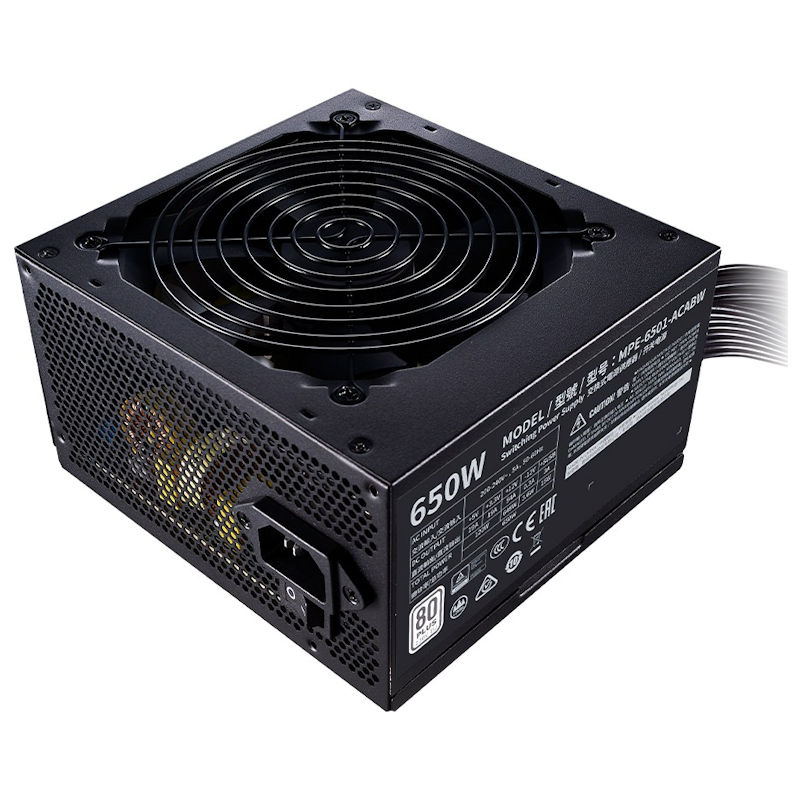

The Cooler Master MWE White 230V 650W 80 Plus V2 Power Supply (MPE-6501-ACABW-AU) is an entry-level power supply designed to provide essential performance and stability for modern PC builds.
It focuses on core reliability by using high-quality internal components and a simplified design.
80 PLUS Standard 230V EU Certified: Guarantees a typical efficiency of 85%, ensuring that the unit converts power effectively without excessive energy waste or heat.
DC-to-DC + LLC Circuit Design: Utilizes advanced Dual Forward circuit technology to convert 12V power to 3V and 5V levels with minimal ripple noise, reducing the risk to your connected components.
120mm HDB Fan: Equipped with a thermally sensitive Hydro Dynamic Bearing (HDB) fan that adjusts its speed based on the system’s temperature, maintaining a balance between cooling and silence.
Single +12V Rail: All power is delivered through a single source to ensure consistent output across all connected cables, making it easier to power power-hungry components like GPUs.
Flat Black Cables: These flexible, low-profile cables are easier to route in tight spaces, improving airflow and providing a cleaner look inside the case compared to traditional bunched cables.
Active PFC: Incorporates Active Power Factor Correction to improve power efficiency and ensure the power factor approaches 0.99 under nominal load.
Comprehensive Protection: Includes industrial-grade safeguards such as Over Voltage (OVP), Over Power (OPP), Short Circuit (SCP), Under Voltage (UVP), and Over Temperature (OTP).
Local Stock: Skip the shipping delays & get it today from our PC Superstore in Charmhaven.
Expert Advice: Not sure if this will suit your requirements? Why not drop in and ask our in-store team of Tech Experts!
$89.00
Only 2 left in stock
%20Specs.webp)
| Weight | 1.86 kg |
|---|---|
| Dimensions | 24.5 × 19.5 × 11 cm |
The Cooler Master MWE White 230V 650W 80 Plus V2 Power Supply (MPE-6501-ACABW-AU) is an efficient 80 PLUS Standard 230V EU certified power supply designed for stable, cost-effective performance.
It utilizes a DC-to-DC + LLC circuit design to provide reliable voltage conversion and features a 120mm HDB fan that adjusts its speed based on real-time thermal demands to maintain a balance between cooling and acoustics.
| Category | Detailed Specification |
| Model Number | MPE-6501-ACABW-AU |
| Wattage | 650 Watts |
| Efficiency Rating | 80 PLUS Standard 230V EU (85% Typical) |
| Form Factor | ATX 12V V2.52 |
| Modularity | Non-Modular |
| PFC | Active PFC |
| Input Voltage | 200-240Vac |
| Cooling System | 120mm HDB (Hydro Dynamic Bearing) Fan |
| Fan Speed | Up to 2400 RPM |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, UVP, OTP |
| Warranty | 3-Year Manufacturer Warranty |
ATX 24-Pin: 1x
EPS 4+4 Pin: 1x
EPS 8-Pin: 1x
SATA Connectors: 6x
Peripheral 4-Pin (Molex): 3x
PCI-e 6+2 Pin: 4x
The single +12V rail design ensures that all components receive consistent power from a single source, which helps prevent compatibility issues with high-draw hardware.
The flat black cables are more flexible than traditional sleeved alternatives, allowing for easier routing and better airflow in compact chassis environments.
