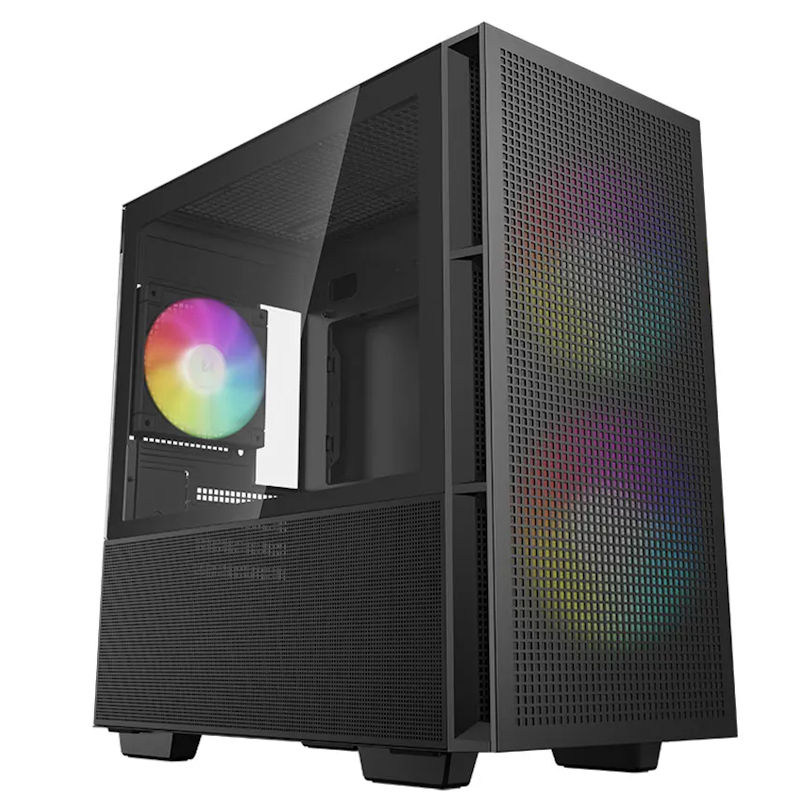

The DeepCool CH360 Tempered Glass mATX Case (R-CH360-BKAPE3-G-1) is a high-airflow Micro-ATX chassis designed with a unique hybrid aesthetic and advanced cooling support for modern, high-performance components.
Hybrid Side Panel Design: Features a unique tempered glass and mesh hybrid side panel, providing a clear view of internal components while supplying additional ventilation directly to the GPU.
High-Airflow Mesh Front: The front panel is heavily ventilated to ensure a consistent supply of fresh air to power-hungry hardware.
Three Pre-installed ARGB Fans: Comes equipped with two 140mm ARGB fans at the front and one 120mm ARGB fan at the rear, all of which are PWM-enabled for precise speed and noise control.
Superior Cooling Support: Despite its compact size, it can house up to a 360mm radiator in the front and a 240mm radiator on the top panel.
Broad Hardware Compatibility: Supports GPUs up to 320mm in length (or 378mm without a front radiator), CPU coolers up to 165mm tall, and standard ATX power supplies up to 160mm.
Modern Front I/O: The top panel includes a high-speed USB 3.2 Gen 2 Type-C port, one USB 3.0 Type-A port, and a hybrid audio jack for convenient connectivity.
Integrated GPU Support: Includes a built-in GPU support arm that is adjustable to prevent heavy graphics cards from sagging over time.
Stress-Free Maintenance: Features magnetic air filters on the top and bottom, along with a magnetic side panel and 26mm of cable management space for a clean, easy build process.
Local Stock: Skip the shipping delays & get it today from our PC Superstore in Charmhaven.
Expert Advice: Not sure if this will suit your requirements? Why not drop in and ask our in-store team of Tech Experts!
$119.00
Only 2 left in stock
%20Specs.webp)
| Weight | 6.8 kg |
|---|---|
| Dimensions | 48 × 28 × 50 cm |
The DeepCool CH360 Tempered Glass mATX Case (R-CH360-BKAPE3-G-1) is a high-airflow Micro-ATX chassis designed for modern power-hungry components.
It features a unique hybrid side panel—combining mesh for direct GPU ventilation with tempered glass for visibility—and comes equipped with three pre-installed ARGB fans.
| Category | Detailed Specification |
| Model Number | R-CH360-BKAPE3-G-1 |
| Case Type | Micro-ATX (mATX) |
| Dimensions (L x W x H) | 428 x 215 x 431 mm |
| Chassis Material | ABS + SPCC + Tempered Glass |
| Side Panel | Hybrid (Mesh + Tempered Glass) |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Expansion Slots | 4 |
| Drive Bays | 2x 3.5″ HDD, 2+1x 2.5″ SSD |
| Front I/O Ports | 1x USB 3.0, 1x USB-C, 1x Audio Combo Jack |
| Max GPU Length | 320 mm |
| Max CPU Cooler Height | 165 mm |
| Max PSU Length | 160 mm (ATX PS2) |
| Included Fans |
Front: 2x 140mm ARGB PWM fans
Rear: 1x 120mm ARGB PWM fan |
| Fan Support (Front) | 3x 120mm / 2x 140mm |
| Fan Support (Top) | 2x 120mm / 2x 140mm |
| Fan Support (PSU Shroud) | 2x 120mm |
| Radiator Support (Front) | 120, 140, 240, 280, 360 mm |
| Radiator Support (Top) | 120, 140, 240 mm |
| Radiator Support (Rear) | 120 mm |
