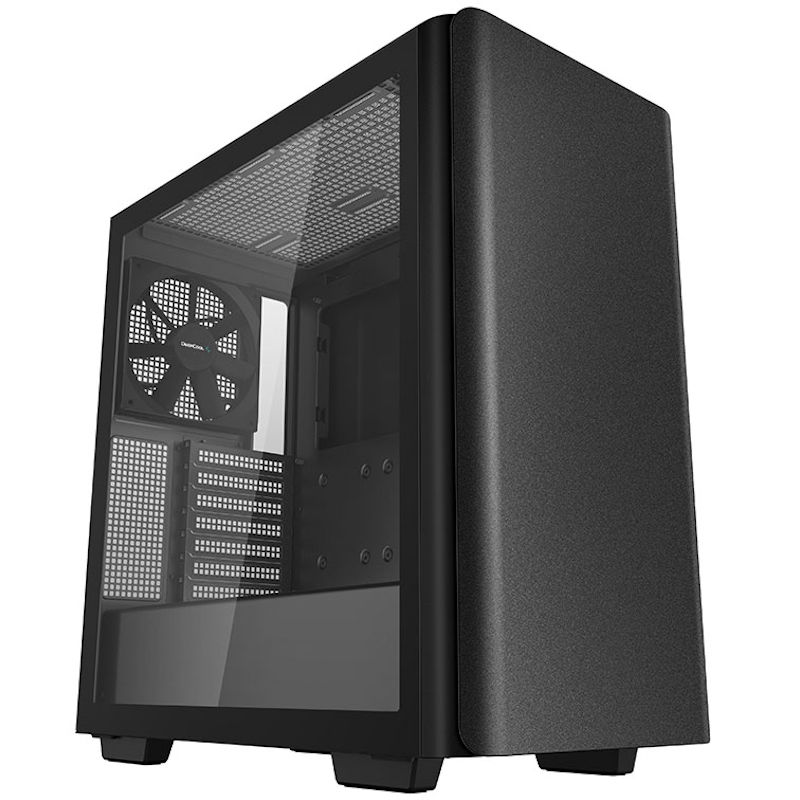

The DeepCool CK500 (R-CK500-BKNNE2-G-1) is a mid-tower ATX case that focuses on a minimalist aesthetic while providing balanced airflow and high hardware compatibility.
Quick-Release Solid Front Panel: Features a curved steel front panel with large side ventilation for airflow, utilizing a magnetic connection for easy removal and cleaning.
Dual 140mm Performance Fans: Comes pre-installed with two 140mm airflow-focused fans (one front, one rear) to provide effective cooling out of the box with reduced noise levels.
Spacious Interior Layout: Designed to accommodate large components, including GPUs up to 380mm in length and CPU air coolers up to 175mm in height.
Broad Motherboard Support: Compatible with a wide range of form factors, including Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards.
Advanced Cooling Support: High capacity for cooling configurations, supporting up to six 120mm or five 140mm fans, and radiator sizes up to 360mm (front) and 280mm (top).
Integrated GPU Support Bracket: Includes a built-in, adjustable anti-sag bracket to protect heavy graphics cards and maintain structural alignment.
User-Friendly Maintenance: Equipped with three dedicated dust filters (front, top, and bottom) with magnetic or quick-release attachments for simple upkeep.
Modern Connectivity: The front I/O panel includes two USB 3.0 ports, one USB 3.1 Type-C port, and a 4-pole combination audio jack.
Local Stock: Skip the shipping delays & get it today from our PC Superstore in Charmhaven.
Expert Advice: Not sure if this will suit your requirements? Why not drop in and ask our in-store team of Tech Experts!
$119.00
Only 1 left in stock
%20Specs.webp)
| Weight | 8 kg |
|---|---|
| Dimensions | 46 × 23 × 47 cm |
The DeepCool CK500 (R-CK500-BKNNE2-G-1) is a sleek mid-tower chassis engineered for a balance of airflow and silent operation.
It features a quick-release magnetic front panel and a spacious interior that accommodates high-end components like large GPUs and tall air coolers.
| Category | Detailed Specification |
| Model Number | R-CK500-BKNNE2-G-1 |
| Case Type | Mid Tower |
| Dimensions (L x W x H) | 456 x 230 x 471 mm |
| Chassis Material | ABS Plastic, SPCC Steel, Tempered Glass |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Expansion Slots | 7 |
| Drive Bays | 2x 3.5″ HDD, 2x 2.5″ SSD |
| Front I/O Ports | 1x USB 3.1 Type-C, 2x USB 3.0, 1x Audio Combo Jack |
| Max GPU Length | 380 mm |
| Max CPU Cooler Height | 175 mm |
| Max PSU Length | 160 mm (ATX PS2) |
| Included Fans |
Front: 1x 140mm Performance Fan
Rear: 1x 140mm Performance Fan |
| Fan Support (Front) | 3x 120mm / 2x 140mm |
| Fan Support (Top) | 2x 120mm / 2x 140mm |
| Fan Support (Rear) | 1x 120mm / 1x 140mm |
| Radiator Support (Front) | 120, 140, 240, 280, 360 mm |
| Radiator Support (Top) | 120, 140, 240, 280 mm |
| Radiator Support (Rear) | 120, 140 mm |
| Dust Filters | Front (Magnetic), Top (Magnetic), Bottom (Quick-release) |
