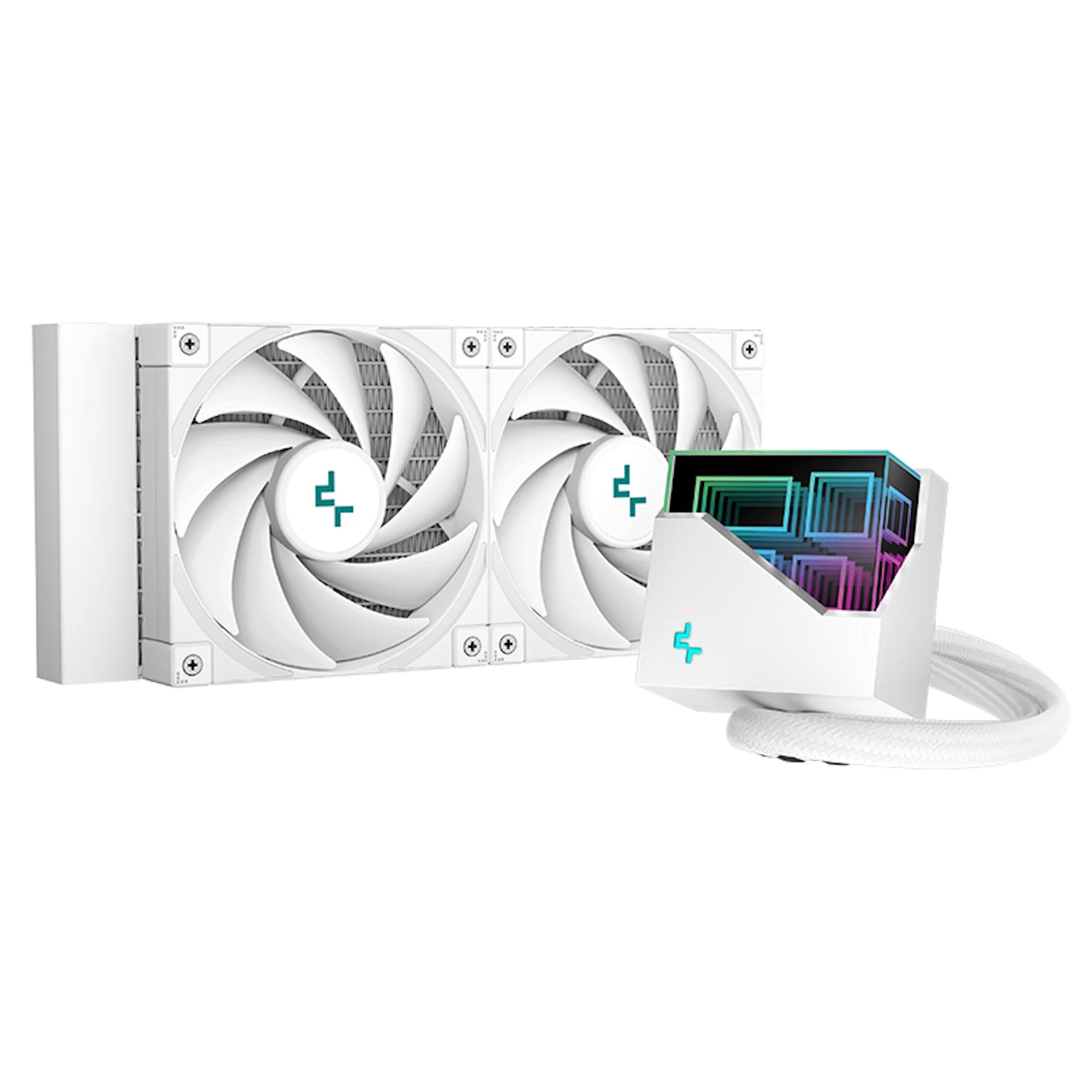

The DeepCool LT520 WH 240mm Liquid CPU Cooler (R-LT520-WHAMNF-G-1) is a high-performance all-in-one thermal solution designed to deliver exceptional heat dissipation for modern processing units. It stands out in any custom configuration with its pristine, clean all-white premium chassis presentation.
This advanced cooling system introduces an enhanced geometric layout featuring a unique three-dimensional infinity mirror pump block. Engineered to balance thermal efficiency with quiet operation, it incorporates powerful fluid dynamic bearing fans and an optimized microchannel architecture to effortlessly handle demanding processing workloads.
Key Features & Specifications
4th Generation High-Performance Pump: Utilizes an upgraded multi-channel internal microchannel structure paired with a powerful three-phase 3100 RPM motor to maximize liquid coolant delivery across the copper block.
Precision FK120 PWM Fans: Features two white 120mm fluid dynamic bearing fans calibrated to provide an impressive 85.85 CFM airflow and 3.27 mmAq high static pressure while minimizing operational noise.
Infinity Mirror Geometric Cap: Showcases a unique multi-faceted structural aesthetic that creates a deep, multidimensional addressable RGB reflection across the central pump assembly.
Solid Copper Cold Plate: Designed with a thick, perfectly flat copper thermal transfer surface that establishes a tight, stable bond directly against the processor integrated heat spreader.
Premium Reinforced Tubing: Equipped with 410mm long durable rubber tubes protected by high-density braided sleeves to prevent permeation and facilitate flexible routing options within your desktop chassis.
The Computer Guy Charmhaven Advantage
In-Store Advice: We can analyze the physical internal layouts of your current ATX or Micro-ATX computer chassis to confirm clean top or front mounting configuration space and coordinate the white components nicely with your power supply cables.
Local Support & Advice: Our local workshop team offers professional configuration support and direct technical integration advice to ensure your high-end cooling system operates properly within its environment.
Original price was: $169.00.$139.00Current price is: $139.00.
Only 2 left in stock
%20Specs.webp)
| Weight | 2 kg |
|---|---|
| Dimensions | 45 × 26 × 14 cm |
Important Product Information
Physical Space and Layout Compliance: Desktop users must verify that their chosen computer chassis provides adequate space for a standard 240mm radiator (282mm total length) along with matching motherboard component clearance before proceeding with installation.
Power Connection Requirements: Proper functionality requires a standard 3-pin connection for the internal liquid pump, a 4-pin PWM header for speed-controlled fan management, and a (+5V-D-G) 3-pin addressable RGB setup for lighting synchronization.
Specifications Table
| Specification | Technical Detail |
| Radiator Size | 240mm |
| Model Number | R-LT520-WHAMNF-G-1 |
| Heatsink Type | Liquid CPU Cooler (All-In-One) |
| Pump Type | 4th Gen DeepCool Three-Phase Motor Pump |
| Fan Size | 120mm x 120mm x 25mm (x2 Fans) |
| Fan Speed Range | 500 ~ 2250 RPM ±10% |
| Max Airflow/CFM | 85.85 CFM |
| Noise Level DBA | ≤32.9 dB(A) (Fan) / 19 dB(A) (Pump) |
| Cooler Clearances | 68mm Pump Height Block Clearance |
| TDP/Cooling Performance | 240W TDP |
| Socket Compatibility | Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155; AMD: sTRX4/sTR4/AM5/AM4 |
| Tube Length | 410mm |
| Base Material | Copper (Cold Plate), Aluminum (Radiator) |
| What’s Included | Mounting brackets, retaining screws, specialized thermal paste (pre-applied/included), fan connection expansion hardware |
