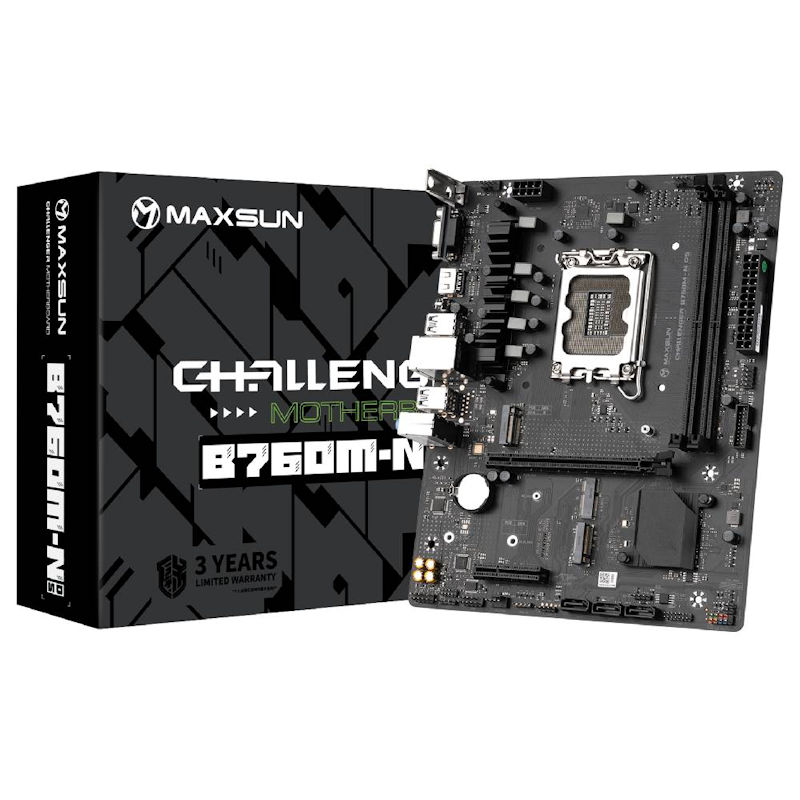

Maxsun Challenger B760M-N D5 DDR5 LGA1700 Motherboard

Maxsun Challenger B760M- D5 DDR5 LGA1700 Motherboard

The Maxsun Challenger B760M-N D5 is a Micro-ATX motherboard featuring an Intel B760 chipset, support for 12th/13th Gen Intel Core processors, and two DDR5 memory slots with support for up to 96GB and speeds up to 6000MHz (OC) via XMP.

Key features include a PCIe 4.0 x16 slot, dual M.2 slots (PCIe 4.0 x4), Realtek 1Gbps LAN, and a Realtek ALC897 5.1-channel audio codec.

It also has a range of USB connectivity and supports Windows 10/11.

$129.00

In stock

Add to Wish List
SKU: MS-CH-B760M-D5-WIFI Category: Brand:

Description

Key features
  • Chipset and CPU: Intel B760 chipset, supporting 12th/13th Gen Intel Core, Pentium Gold, and Celeron processors via an LGA 1700 socket.
  • Memory: 2 x DDR5 slots, supporting up to 96GB of RAM and speeds up to 6000MHz (OC) via Intel XMP.
  • Expansion:
    • 1 x PCIe 4.0 x16 slot.
    • 1 x PCIe 3.0 x4 (or “open”) slot.
  • Storage:
    • 2 x M.2 slots, supporting PCIe 4.0 x4 mode.
    • 3 x SATA 6Gb/s ports.
    • Supports RAID configurations.
  • Networking: Realtek RTL8111H 1Gbps LAN controller.
  • Audio: Realtek ALC897 Codec for 5.1-channel High Definition Audio.
  • Connectivity:
    • Total of 12 USB ports, including multiple USB 3.2 Gen1 Type-A and USB 2.0 ports on the front and rear.
    • 1 x HDMI port (4K@30Hz) and 1 x VGA port (supports up to 2048×1536 50Hz).
  • Form Factor: Micro-ATX (245mm x 190mm).
  • Other: Supports Windows 10/11 and has 4x Distributed Debug LEDs for troubleshooting.
