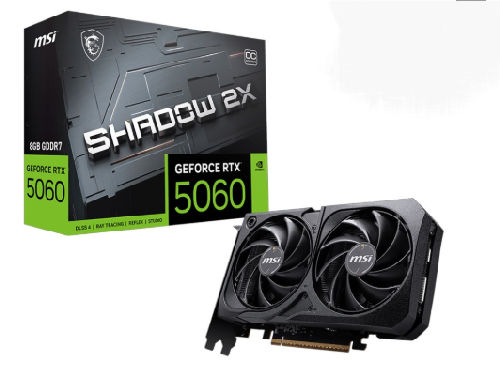

The MSI RTX 5060 Shadow 2X OC 8GB GDDR6 Graphics Card (GeForce RTX 5060 8G SHADOW 2X OC) is a compact, performance-driven graphics card built on the NVIDIA Blackwell architecture.
Designed for high-refresh-rate 1080p and 1440p gaming, this card features a dual-fan thermal design with TORX Fan 5.0 technology for superior cooling and stability.
It is an ideal choice for Small Form Factor (SFF) builds due to its short 197mm length and dual-slot design.
Next-Gen Architecture: Powered by NVIDIA Blackwell, featuring DLSS 4 with Multi Frame Generation for massive AI-driven performance boosts.
Factory Overclocked: Comes with a 2527 MHz Boost Clock, which can be pushed further to 2535 MHz via the Extreme Performance mode in MSI Center.
Advanced Memory: Equipped with 8GB of ultra-fast GDDR7 memory on a 128-bit bus, providing an effective speed of 28 Gbps.
Efficient Cooling: The Dual-Fan Thermal Design and Zero Frozr technology ensure the fans stop during low-load tasks for silent operation.
SFF-Ready: At under 200mm in length, it fits into almost any modern chassis, including compact ITX cases.
Robust Build: Includes a reinforcing backplate with airflow vents that allow heat to pass through directly, improving overall thermal management.
Modern Connectivity: Features three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting resolutions up to 8K at 120Hz.
Local Stock: Skip the shipping delays and get it today from our PC Superstore in Charmhaven.
Expert Advice: Not sure if your 550W power supply is enough for your specific CPU and GPU combo? Why not drop in and ask our in-store team of Tech Experts!
$519.00
Out of stock
%20Specs.webp)
| Weight | .82 kg |
|---|---|
| Dimensions | 28 × 21 × 7 cm |
Power Requirements: While the card consumes 145W, it only requires a single 8-pin power connector, making it an easy upgrade for most existing systems.
PCIe Compatibility: It utilizes a PCIe 5.0 x8 interface. While fully backwards compatible with PCIe 4.0 and 3.0 slots, using it in a Gen 5 slot ensures maximum available bandwidth.
| Category | Specification |
| Model Name | GeForce RTX 5060 8G SHADOW 2X OC |
| Model Number | G5060-8S2C |
| EAN / UPC | 0824142423851 / 824142423851 |
| GPU | NVIDIA GeForce RTX 5060 |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| Power Consumption | 145 W |
| Power Connector | 1x 8-pin |
| Recommended PSU | 550 W |
| Dimensions | 197 mm x 120 mm x 40 mm |
| Weight (Card) | 493 g |
| Outputs | 3x DP 2.1b, 1x HDMI 2.1b |
