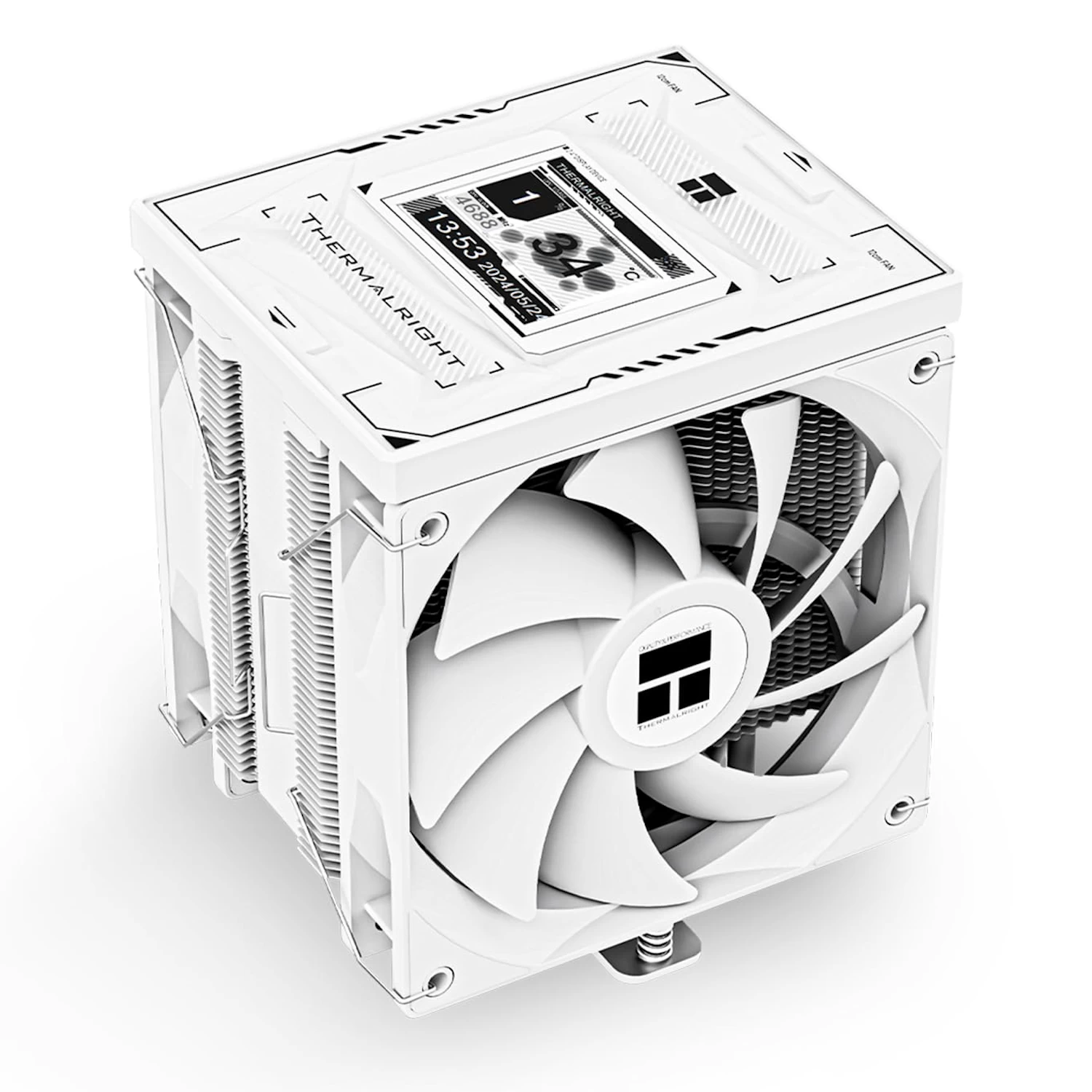

Thermalright Burst Assassin 120 Vision CPU Air Cooler White (Burst Assassin 120 Vision White)

The Thermalright Burst Assassin 120 Vision CPU Air Cooler White (Burst Assassin 120 Vision White) is a premium, single-tower cooling solution designed to deliver exceptional thermal management for high-performance processors. Combining a clean, all-white aesthetic with cutting-edge monitoring hardware, this cooler is engineered to satisfy both strict system building styles and critical hardware tracking demands.

The cooler integrates an onboard real-time Vision monitoring display built into the top cover, which connects seamlessly via motherboard USB and SATA power to track real-time system performance. Thermal dissipation is driven by a precision nickel-plated C1100 pure copper base and a dense aluminum fin stack, working concurrently with dual high-performance S-FDB bearing 120mm PWM fans in a push-pull setup to ensure low operational noise and sustained thermal safety under high computing loads.

Key Features & Specifications

  • Integrated Vision Display Panel: Features a built-in real-time hardware monitoring screen on the top cover for tracking critical processor statistics dynamically.

  • Optimized Six Heatpipe Engineering: Utilizes six 6mm high-performance heatpipes combined with a C1100 pure copper nickel-plated base plate for highly efficient core-to-fin heat transfer.

  • Dual-Fan Push-Pull Configuration: Standard equipment includes a matching TL-C12W V2 forward fan and a TL-C12RW V2 reverse fan to maximize airflow routing through the tower.

  • Premium Fluid Dynamic Bearings: S-FDB fan bearing architecture ensures exceptionally smooth rotation, extended hardware lifespans, and reduced acoustic footprints.

  • Broad Modern Socket Support: Fully compatible with standard consumer platforms, including native out-of-the-box mounting for Intel LGA1700/1851 and AMD AM4/AM5 sockets.

The Computer Guy Charmhaven Advantage

  • In-Store Advice: Our local workshop can help ensure that your specific motherboard internal USB headers and power connections are properly configured to support the built-in monitoring screen without restricting front-panel expansion.

  • Local Support & Advice: Being based right here on the Central Coast means you receive physical, expert advice on memory clearance adjustments, proper internal thermal paste spread techniques, and optimal fan curve calibration within your UEFI BIOS.

$69.00

In stock

SKU: Burst Assassin 120 Vision White Category: Brand:

Description

Additional information

Weight 2 kg
Dimensions 16 × 13 × 6 cm

Specifications

Important Product Information

  • Connectivity & Software Requirements: The built-in LCD screen operates using a combined connection configuration consisting of a native motherboard internal USB header for data transfer and a SATA power connector from the PSU.

  • Chassis & Component Clearance: Ensure your computer enclosure accommodates a total vertical CPU cooler height threshold of 156mm, and review adjacent motherboard VRM heatsink structures to verify non-interference before final installation.

Specification Technical Data
Model Number Burst Assassin 120 Vision White
Heatsink Type Single Tower
Heat Pipes 6 x 6mm AGHP Copper Heatpipes
Fan Size and Model 120mm x 120mm x 25mm (1x TL-C12W V2 & 1x TL-C12RW V2 Reverse)
Fan Speeds Up to 1500 RPM ±10% (MAX)
Max Airflow 66.17 CFM (Forward) / 58.0 CFM (Reverse)
Noise Level 25.6 dBA (MAX)
Cooler Height Clearance 156 mm
TDP/Cooling Performance 245W
Socket Compatibility (Intel) LGA 1851 / 1700 / 1200 / 115X
Socket Compatibility (AMD) AM5 / AM4
Noise Context Fluid dynamic bearing layout optimized for whisper-quiet desktop environments
Base Material C1100 Pure Copper Nickel Plated
What’s Included High-grade thermal paste, PWM Y-splitter cable, Intel & AMD dedicated mounting hardware sets
