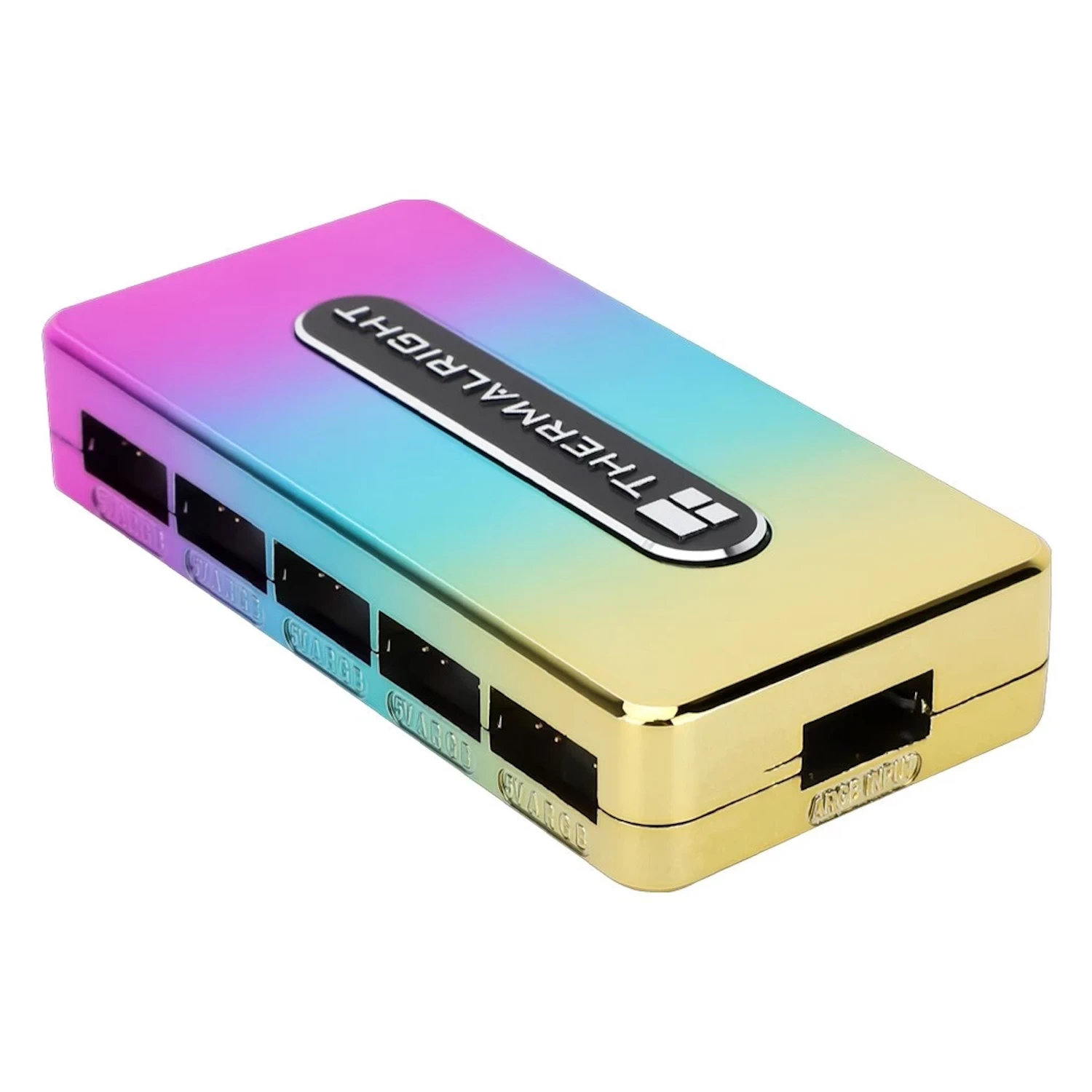

The Thermalright Fan ARGB HUB Controller (TL-ARGB HUB Controller REV.A) is a dedicated solution for Central Coast PC enthusiasts looking to unify their system’s lighting. This specialized hub allows you to manage up to 8 groups of addressable RGB components from a single motherboard header, providing a centralized point for managing complex lighting configurations without exhausting your motherboard’s 5V headers.
Built with a durable ABS plastic housing, the Thermalright ARGB Hub Rev.A ensures stable performance by drawing power directly from a SATA connection rather than the motherboard. Its dual-mounting system, featuring both magnetic suction and strong double-sided adhesive, offers the flexibility to secure the hub anywhere in your chassis for a truly professional and clean cable management finish.
8-Port ARGB Expansion: Connect up to 8 individual ARGB devices to a single 3-pin 5V header for synchronized lighting effects.
SATA Powered Stability: Direct power input from the PSU ensures consistent brightness and performance even when all 8 ports are in use.
Dual Mounting Options: Features both a magnetic base and strong adhesive backing for secure, tool-free installation in any case.
5V ARGB Synchronization: Fully compatible with motherboard software from ASUS, MSI, Gigabyte, and ASRock for unified lighting control.
Compact Footprint: The slim 90mm x 46mm design makes it easy to hide behind motherboard trays or in tight PSU shrouds.
Plug-and-Play Setup: Includes a 500mm signal cable to reach your motherboard easily, simplifying the initial installation process.
In-Store Advice: Not sure how many LEDs your 5V header can safely handle even with a hub? Bring your components into our store, and we can help you calculate the total load to ensure your ARGB Controller operates safely and reliably.
Local Support: By purchasing locally, you receive a genuine Australian warranty and direct help from our tech team if you need assistance with BIOS settings or ARGB software conflicts.
$25.00
In stock
%20Specs.webp)
| Weight | .05 kg |
|---|---|
| Dimensions | 9 × 2 × 5 cm |
Voltage Warning: This hub is strictly for 5V 3-pin ARGB devices only; it is not compatible with 12V 4-pin RGB headers and connecting them will cause permanent damage.
PWM Limitation: This specific Rev.A model focuses on ARGB synchronization; while some Thermalright hubs include fan power, always verify if your specific fans require a separate PWM header for speed control.
| Feature | Specification |
| Model Number | TL-ARGB HUB Controller REV.A |
| Total Ports | 8 x 3-Pin ARGB |
| Interface Voltage | 5V (+5V/D/G) |
| Power Input | SATA Power (12V Input) |
| Dimensions | 90 x 46 x 16 mm |
| Weight | 0.05 kg |
| Material | ABS Plastic |
| Color | Multicolor / Black |
| Mounting | Magnetic & Adhesive |
