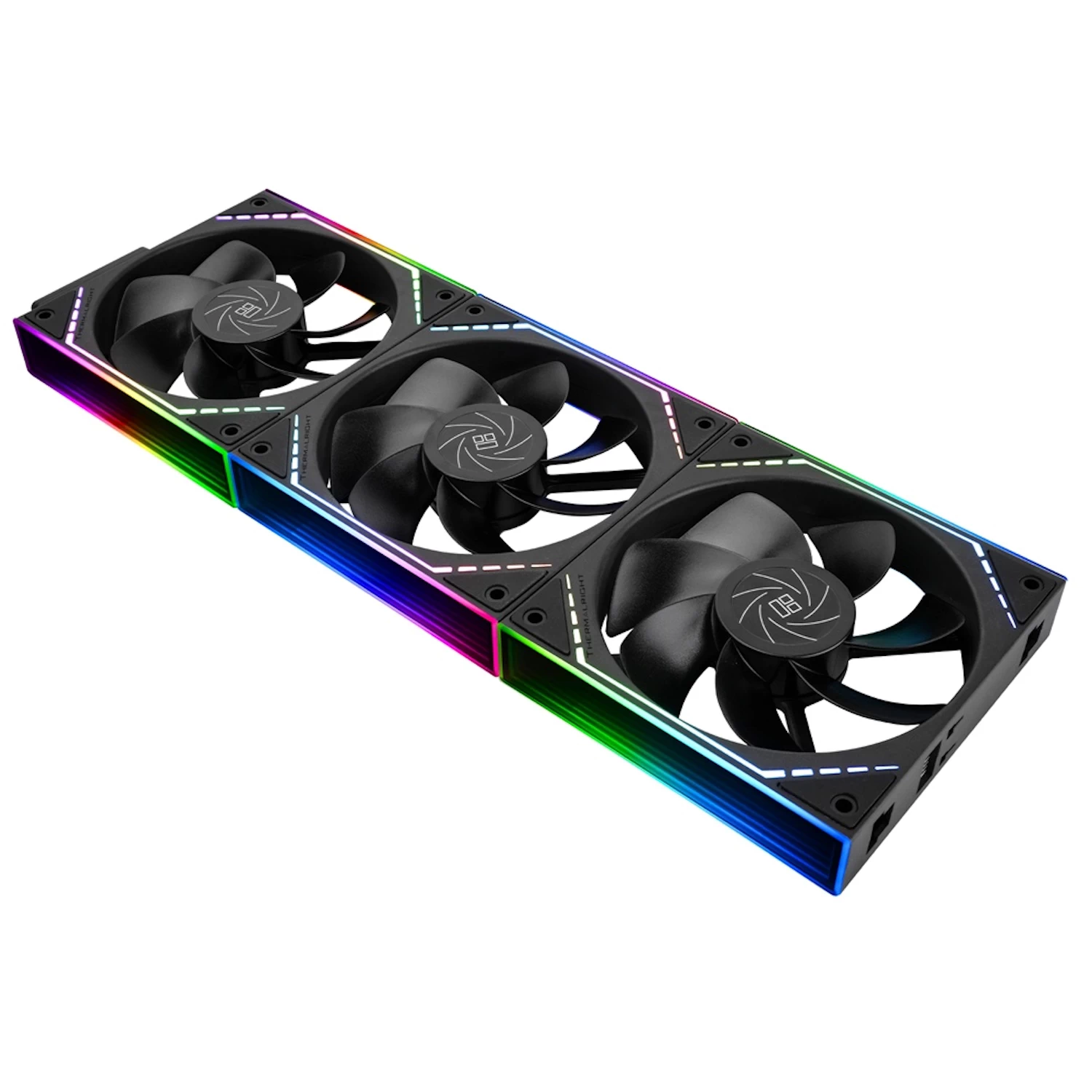

The Thermalright TL-M12QR X3 120mm Reverse Airflow ARGB 3 Pack Black (TL-M12QR) is a premium cooling solution engineered specifically for high-end intake configurations. This triple-pack features 120mm fans with inverted blades, allowing for a seamless aesthetic in modern “fish tank” or panoramic chassis designs without compromising on essential airflow performance.
Equipped with S-FDB (Sealed Fluid Dynamic Bearing) technology, these fans are designed to provide whisper-quiet operation while maintaining long-term mechanical reliability. The integrated Infinity Mirror ARGB lighting creates a deep, multi-dimensional visual effect on both the front and sides of the frame, which can be fully synchronized with standard 5V addressable RGB headers on modern motherboards.
Key Features & Specifications
Reverse Airflow Design: Inverted blades allow for intake orientation while keeping the “pretty” side of the fan and ARGB effects visible to the user.
Infinity Mirror Lighting: Features high-density ARGB LEDs with a multi-layered mirror effect on the frame for premium aesthetic customization.
Daisy-Chain Connectivity: Simplified “wireless” splicing design allows fans to link together, reducing cable clutter and streamlining the installation process.
S-FDB Bearing: Utilises a fluid dynamic bearing system to minimise friction, reduce vibration, and extend the operational lifespan of the motor.
PWM Speed Control: 4-pin PWM interface allows for dynamic speed adjustment between 300 and 1500 RPM based on real-time system temperatures.
Optimised Static Pressure: Engineered to push 47.6 CFM of air through restrictive case panels and dust filters effectively.
The Computer Guy Charmhaven Advantage
In-Store Advice: Our local team can verify if your specific chassis or radiator setup will benefit from the reverse blade configuration to ensure optimal thermal performance.
Local Support: Being based right here on the Central Coast, we can provide technical assistance and advice for setting up ARGB controllers and PWM curves.
$45.00
In stock
%20Specs.webp)
| Weight | .7 kg |
|---|---|
| Dimensions | 16 × 13 × 10 cm |
Important Product Information
Compatibility & Power: Requires a standard 4-pin PWM header for fan power and a 3-pin 5V ARGB header for lighting; check your motherboard manual for header availability.
Local Technical Support: All technical guidance and setup assistance are handled locally by our Charmhaven experts to ensure your build runs perfectly.
Specifications Table
| Specification | Details |
| Fan Dimensions | 124 x 120 x 25 mm |
| Rated Speed | 1500 RPM ±10% |
| Maximum Airflow | 47.6 CFM |
| Static Pressure | 1.31 mm H2O |
| Noise Level | 23.2 dBA (Max) |
| Bearing Type | S-FDB Bearing |
| Connector | 4-pin PWM |
| ARGB Connector | 3-pin 5V |
| Rated Current | 0.15 A |
