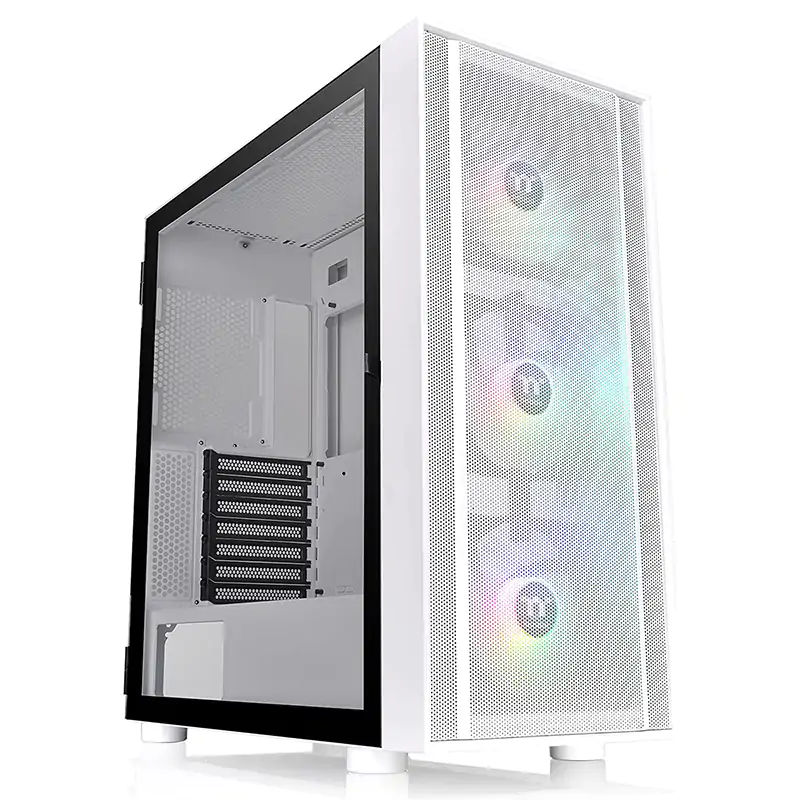

The Thermaltake H570 TG ARGB Mid Tower E-ATX Case White (CA-1T9-00M6WN-01) is a high-airflow mid-tower chassis featuring a clean white aesthetic and extensive cooling support for enthusiast-level builds.
Airflow-Optimized Mesh Front: Features a large mesh front panel designed for massive airflow performance to keep high-end components cool under load.
Three Pre-installed ARGB Lite Fans: Comes equipped with three 120mm hydraulic bearing ARGB fans at the front that can be synchronized with major motherboard RGB software.
Hinged Tempered Glass Window: Includes a 4mm thick hinged tempered glass panel on the left side, providing durability and easy access to internal components.
Extensive Motherboard Support: Designed to accommodate a wide range of form factors, including E-ATX (12″ x 13″), ATX, Micro-ATX, and Mini-ITX.
Dual 360mm Radiator Compatibility: Supports mounting up to a 360mm radiator on both the top and the front panels simultaneously for advanced liquid cooling setups.
High-End Expansion Clearance: Offers generous space for large hardware, supporting GPUs up to 375mm in length and CPU coolers up to 160mm in height.
Motherboard RGB Sync: Fully compatible with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome for unified lighting control.
Full-Length PSU Cover: Features a built-in power supply shroud that hides cables for a professional look while maintaining clear airflow for storage drives.
Flexible Fan Mounting: The chassis can house up to seven 120mm fans in total, or alternative configurations like two 200mm fans at the front for maximum air intake.
Local Stock: Skip the shipping delays & get it today from our PC Superstore in Charmhaven.
Expert Advice: Not sure if this will suit your requirements? Why not drop in and ask our in-store team of Tech Experts!
$139.00
In stock
%20Specs.webp)
| Weight | 7.5 kg |
|---|---|
| Dimensions | 49 × 22 × 47 cm |
The Thermaltake H570 TG ARGB Mid Tower E-ATX Case White (CA-1T9-00M6WN-01) is a high-airflow mid-tower chassis featuring a large mesh front panel and a 4mm hinged tempered glass side panel.
It is designed to accommodate high-end hardware, including E-ATX motherboards, and comes equipped with three pre-installed 120mm ARGB Lite fans that can be synchronized with major motherboard software.
| Category | Detailed Specification |
| Model Number | CA-1T9-00M6WN-01 |
| Case Type | Mid Tower |
| Color | Snow (White) |
| Dimensions (H x W x D) | 487 x 216 x 463.6 mm |
| Chassis Material | SPCC Steel |
| Side Panel | 4mm Tempered Glass x 1 |
| Motherboard Support | E-ATX (12″x13″), ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 |
| Drive Bays | 2x 3.5” HDD + 2x 2.5” SSD OR 4x 2.5” SSD |
| Front I/O Ports | 2x USB 3.0, 1x HD Audio |
| Max GPU Length | 375 mm |
| Max CPU Cooler Height | 160 mm |
| Max PSU Length | 180 mm (with HDD Cage) |
| Included Fans | Front: 3x 120mm ARGB Lite Fans (1000rpm, 22.3 dBA) |
| Fan Support (Front) | 3x 120mm / 3x 140mm / 2x 200mm |
| Fan Support (Top) | 3x 120mm / 2x 140mm |
| Fan Support (Rear) | 1x 120mm |
| Radiator Support (Front) | 120, 140, 240, 280, 360 mm |
| Radiator Support (Top) | 120, 140, 240, 280, 360 mm |
| Radiator Support (Rear) | 120 mm |
