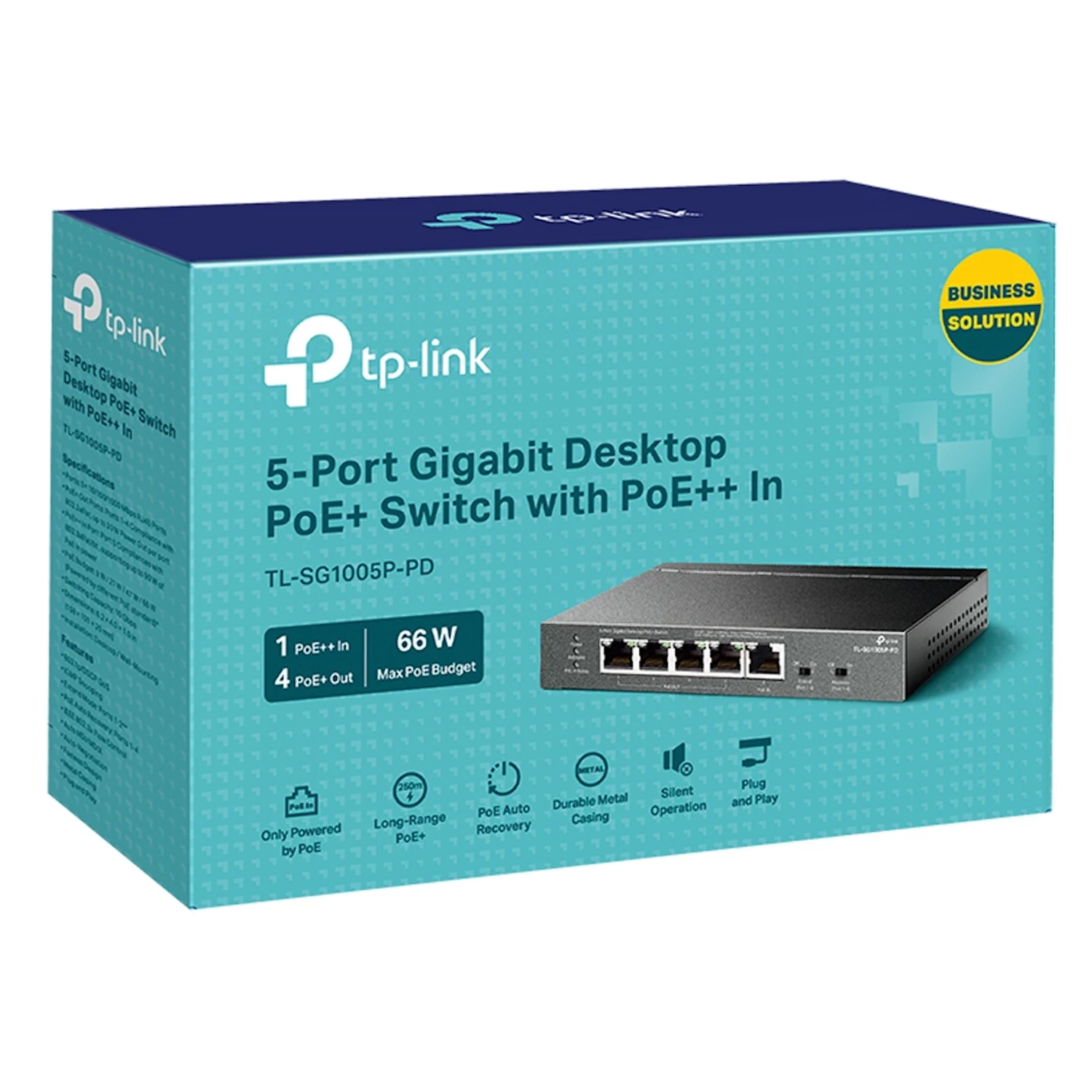

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop POE/POE+ Extender “No Power Adapter” (TL-SG1005P-PD)

The TP-Link 5-Port Gigabit Desktop PoE+ Extender (TL-SG1005P-PD) is a specialized networking solution designed to expand your Power over Ethernet (PoE) reach without requiring a local power outlet. This device acts as a PoE extender, drawing power from an upstream PoE source (like a PoE switch or injector) and passing it through to downstream devices, making it an essential tool for installing IP cameras or access points in remote locations.

Equipped with one PoE++ input port and four PoE+ output ports, this compact switch can deliver up to a 66W total PoE budget when powered by an 802.3bt source. Its fanless, sturdy metal casing ensures silent operation and reliable heat dissipation, which is critical for long-term stability in diverse Australian installation environments, from home ceilings to office cupboards.

Key Features & Specifications

• PoE Powered Design: Operates entirely on power received through the Ethernet cable, eliminating the need for a separate power adapter at the installation site.

• Gigabit Connectivity: All five ports support 10/100/1000 Mbps speeds for high-speed data transfer across your local network.

• PoE+ Output: Can provide power to up to four 802.3af/at compliant devices, such as wireless access points or security cameras.

• Long Range Mode: Supports a “PoE Extend Mode” that allows for data and power transmission up to 250 metres at 10Mbps—ideal for long-distance surveillance runs.

• Auto-Sensing Technology: Automatically detects the required power for connected devices to prevent electrical damage to non-PoE hardware.

• Durable Metal Chassis: The compact, wall-mountable design is built to last and provides superior protection for internal components.

The Computer Guy Charmhaven Advantage

• In-Store Advice: Our local team can help you calculate your total PoE power budget to ensure your upstream switch provides enough “juice” to power all the devices you plan to connect to this extender.

• Local Knowledge: We’ve deployed these units in numerous Central Coast properties; we can provide specific tips on cable grading (Cat6 vs Cat5e) to ensure you get the maximum possible distance and wattage.
