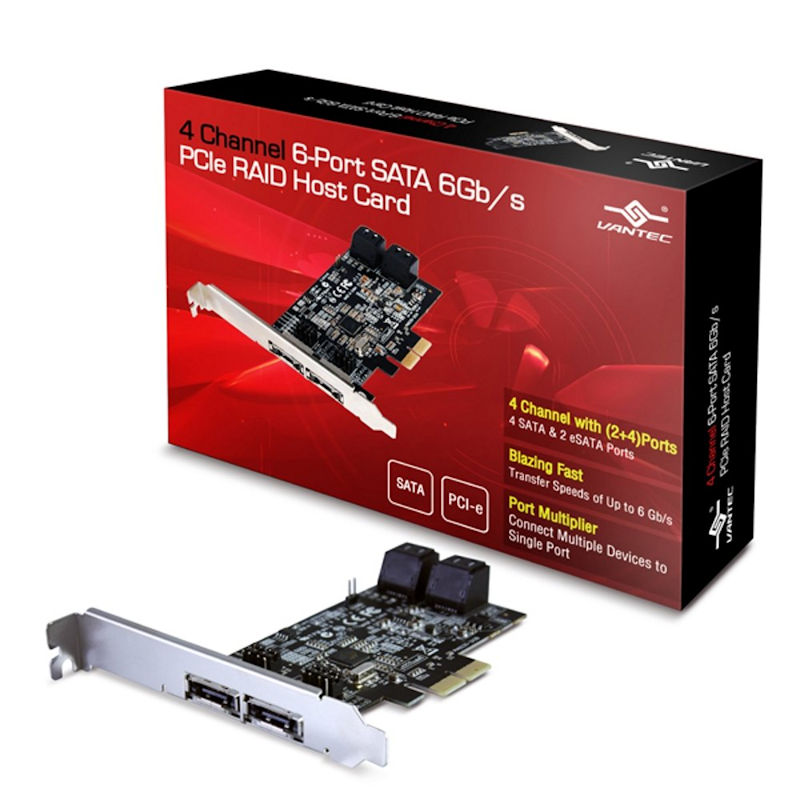

The Vantec 4-Channel 6-Port SATA 6Gb/s PCIe RAID Host Card (UGT-ST644R) uses a Marvell 88SE9230 chipset, has 4 internal and 2 external (eSATA) ports, supports PCIe 2.0 x4 slots, and offers RAID 0, 1, 10, and HyperDuo for data protection and performance.
It is compatible with Windows XP, 7, & 10 and comes with a low-profile bracket.
- Internal Ports: 4 x SATA 6Gb/s (can be configured as 4 internal or 2 internal and 2 external eSATA)
- Chipset: Marvell 88SE9230
- Interface: PCI Express 2.0 x4 (backward compatible with 1.x)
- RAID Support: RAID 0, 1, 10, and HyperDuo
- Operating System Support: Windows XP, Server 2003/2008, Vista, 7, 8, 8.1, 10
- Dimensions: 111 x 68 x 18mm
- Included Accessories: Driver CD, low-profile bracket, 2 SATA cables, user manual
Key Features
- Connectivity: The card provides a total of 6 ports, which can be configured using jumpers for internal or external use, supporting either 4 internal or a mix of internal and external eSATA drives.
- Performance: It uses the SATA III 6Gb/s interface for fast data transfer speeds.
- RAID and HyperDuo: RAID 0, 1, and 10 offer performance and/or redundancy. HyperDuo technology allows you to use an SSD as a cache for a traditional HDD to boost performance.
- Compatibility: The card requires a PCIe x4 or better slot and supports a wide range of Windows operating systems.
- Note: For RAID configuration, a fresh operating system installation is recommended, and the card is not supported for Windows 11.
