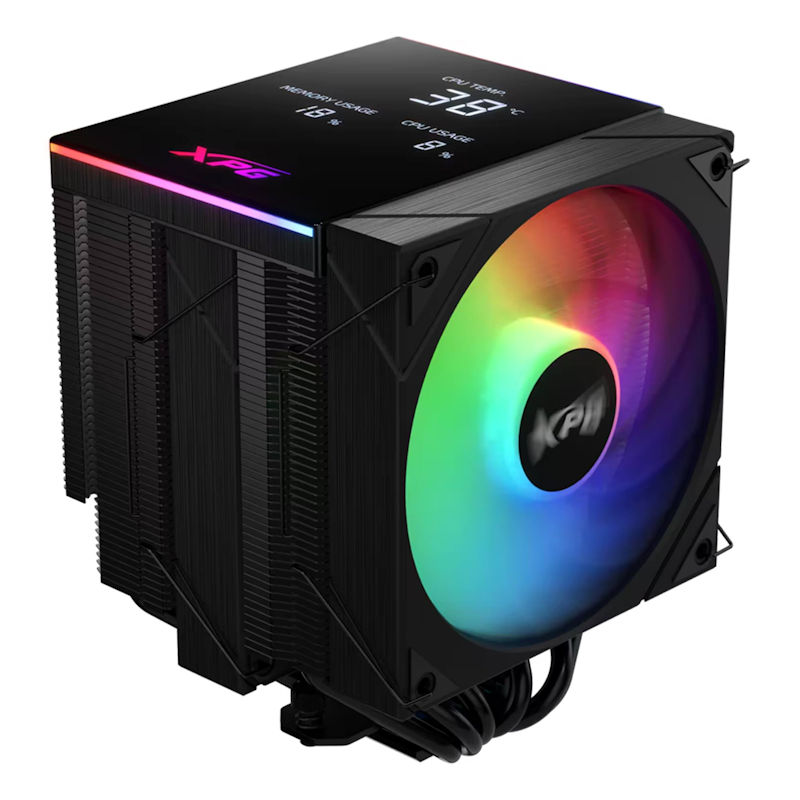

The XPG MAESTRO PLUS 62DA CPU Air Cooler Black (FAN-XP-62DA) stands out as a flagship dual-tower thermal platform designed to manage the rigorous processing requirements of high-end consumer hardware. Built with a premium, fully blacked-out structural finish, this massive cooling assembly infuses industrial-grade heat dissipation with an innovative smart ecosystem tailored for modern PC performance tuning.
This advanced structural cooler utilizes an optimized offset layout housing six 6mm high-conductivity copper heat pipes configured with direct-touch positioning to draw energy immediately off the processor die. Operating with dual 120mm Fluid Dynamic Bearing (FDB) fans and a signature real-time digital status display that monitors system statistics dynamically using XPG Prime software, it delivers substantial structural cooling overhead while maintaining optimal clearance for surrounding high-profile system components.
Key Features & Specifications
Massive Dual-Tower Engineering: Designed with dual high-density aluminum fin stacks and six high-performance direct-touch copper heat pipes providing an exceptional 250W TDP thermal threshold.
Real-Time Digital Display: Integrated top armor shroud panel channels live monitoring statistics for CPU core temperatures, structural usage metrics, and RAM utilization on a clear digital readout.
Fluid Dynamic Bearing PWM Fans: Equipped with twin pressure-optimized 120mm PWM fans utilizing smart curves to shift up to 63.62 CFM of air with near-silent acoustics averaging under 22 dBA.
Universal Architecture Support: Features a robust heavy-duty bracket layout engineered to support modern mainstream processing setups including Intel LGA 1700/1851 formats and AMD AM5 configurations.
The Computer Guy Charmhaven Advantage
In-Store Advice: Our local technical specialists can inspect your custom motherboard layout, memory clearances, and internal chassis spaces to guarantee this broad dual-tower platform seats comfortably without blocking critical desktop hardware.
Local Support & Advice: Based locally right here in Charmhaven on the Central Coast, we offer expert assistance with routing your internal 9-pin USB data lines and configuring tailored BIOS fan profiles to keep your rig running cool.
$69.00
In stock
%20Specs.webp)
| Weight | 2 kg |
|---|---|
| Dimensions | 15 × 15 × 18 cm |
Important Product Information
Chassis & Interface Clearances: Ensure your desktop case provides a vertical cooler height space clearance of at least 160mm, and verify your motherboard features an open internal 9-pin USB 2.0 header to enable the status screen.
Power & Optimization Guidelines: Connects using standard 4-pin PWM and 3-pin 5V addressable RGB headers for unified hardware synchronization across major motherboard software suites without needing complex auxiliary control hubs.
| Technical Specification | Details |
| Model Number | FAN-XP-62DA (MAESTROPLUS62DA-BKCWW) |
| Heatsink Type | Heavy-Duty Dual-Tower Blacked-Out Aluminum Fin Matrix |
| Heat Pipes | 6 x Φ6mm U-shaped High-Performance Copper Heatpipes |
| Fan Size and Model | 120 x 120 x 25 mm XPG ARGB PWM Fluid Dynamic Bearing (FDB) Fans (2 included) |
| Fan Speeds | PWM 800 ~ 1800 RPM (±10%) |
| Max Airflow | 63.62 CFM |
| Noise Level | 22.0 dBA (Maximum under full operational load) |
| Cooler Height Clearance | 160 mm vertical clearance required |
| TDP/Cooling Performance | 250 Watts thermal design power capability |
| Socket Compatibility (Intel) | LGA 1851 / 1700 / 1200 / 115X |
| Socket Compatibility (AMD) | AM5 / AM4 / AM3 |
| Noise Context | Ultra-quiet continuous running profile averaging less than 22 dBA during heavy workflows |
| Base Material | Heat-Pipe Direct Touch (HDT) copper base with composite aluminum fin arrays |
| What’s Included | High-performance thermal paste, thermal paste spatula, universal snap-in mounting hardware kits for Intel/AMD platforms, Intel backplate, PWM fan connection accessories |
