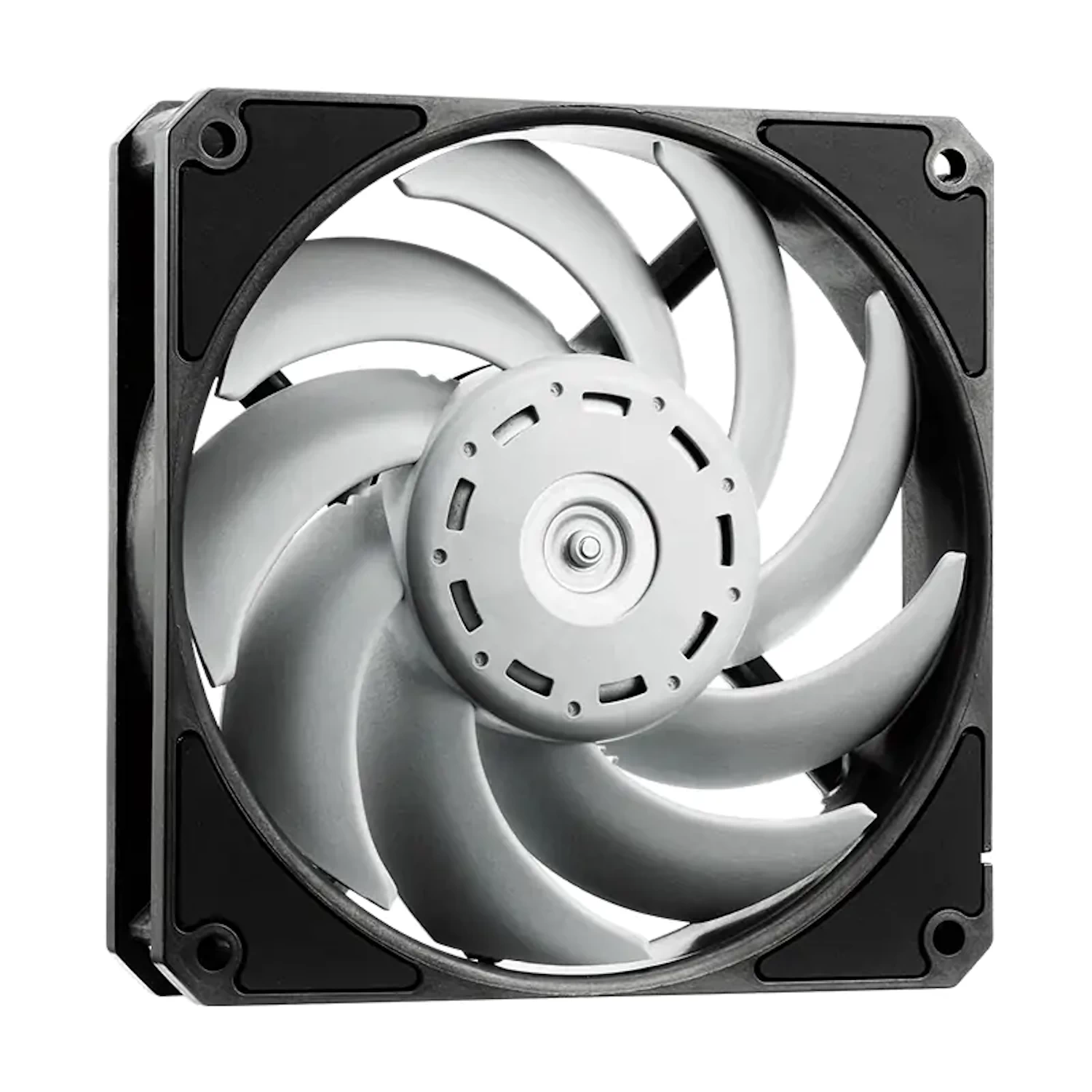

The XPG Vento Pro 120 PWM Case Fan (VENTOPRO120PWM-BKCWW) is a high-performance cooling fan co-designed with Nidec, utilizing the legendary GentleTyphoon design to deliver industry-leading static pressure and airflow. Engineered for the most demanding builds, this fan excels on water-cooling radiators and in space-constrained chassis where air resistance is high.
Equipped with high-precision Japanese Dual Bearings, the Vento Pro is built for heavy-duty thermal environments, boasting an incredible MTTF of up to 250,000 hours.
Its innovative motor support mechanism and anti-vibration rubber pads ensure that even at its maximum speed of 2,150 RPM, it operates at a refined “vibration tone” that is less intrusive to human ears.
Key Features & Specifications
Cooled by Nidec GentleTyphoon: Leverages a world-renowned propeller design to provide the ultimate balance of high static pressure (3.15 mm H₂O) and high airflow (75 CFM).
4-Pin PWM Design: Allows the motherboard to dynamically adjust fan speeds between 900 and 2,150 RPM, ensuring silent operation during low-load tasks.
Daisy-Chain Capability: Features integrated flat cables that allow multiple fans to be connected in sequence, simplifying cable management and motherboard header usage.
High Precision Dual Bearings: Japanese-quality bearings ensure long-term reliability and efficient, quiet spinning under high thermal loads.
Double-Vibration Reduction: Innovative motor design utilizes a spring instrument and double-vibration reduction structure to dampen mechanical noise.
High Thermal Endurance: Verified to maintain stability and quiet operation in ambient temperatures up to 60°C.
Why Buy from The Computer Guy Charmhaven?
Local Stock: We keep these enthusiast-grade Nidec-designed fans right here in Charmhaven—no need to wait for shipping when you need peak performance now.
Expert Advice: If you are serious about water cooling, the Vento Pro is our top recommendation for radiators. The high static pressure means it can push air through dense radiator fins far more effectively than standard case fans. Drop by the store and we can show you how the Daisy-Chain feature can significantly clean up the cable mess in your next high-airflow build!
$19.00
In stock
%20Specs.webp)
| Weight | .23 kg |
|---|---|
| Dimensions | 12.6 × 12 × 3 cm |
Important Product Information
Nidec Engineering: This isn’t just an “XPG” fan; it’s a genuine Nidec design. For enthusiasts, this means you’re getting the motor technology used in high-end industrial and server cooling, optimized for a consumer PC environment.
Cable Length: The fan includes a total cable length of 620mm (including a 450mm extension cable), providing plenty of reach for large full-tower cases.
| Feature | Specification |
| Model Number | VENTOPRO120PWM-BKCWW |
| Dimensions | 120 x 120 x 25 mm |
| Bearing Type | Dual Bearings |
| Connector | 4-Pin PWM |
| Speed (RPM) | 900 ~ 2,150 RPM ± 10% |
| Max Airflow | 75 CFM |
| Max Static Pressure | 3.15 mm H₂O |
| Noise Level | 10 – 28 dBA (Max) |
| Rated Voltage | DC 12V |
| Operating Voltage | DC 5V ~ 13.2V |
| MTTF (25°C) | 250,000 Hours |
| Warranty | 5 Years |
